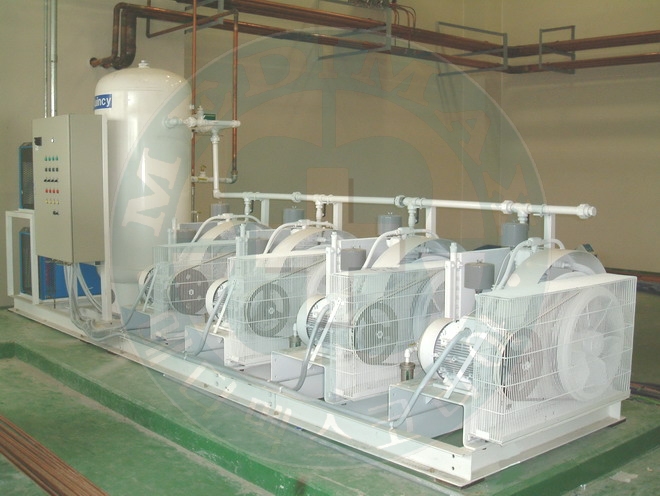

| Medical Air Compressor System |
공기압축기를
이용하여 압축된 공기를 air dryer filtering을 통해 습기, 먼지,
박테리아균등을 제거하여 순수하고 깨끗한 의료용 무균공기를 생성, 공급하는 장치로서
호홉기 질환에 대한 분무요법, 인공 호홉기의 구동용, 보육기의 산소농도 조절용,
수술도구의 오물질 제거용,치과의 AIR DRILL의 구동용으로 사용되며,
특히, 중환자의 장기적인 산소 투여시 산소와 혼합하여 환자에게 깨끗한 건조공기를
공급하기 위해 중앙기계실에 설치하여 병원 내 필요로 하는 곳의 배출구로 배관을
통해 공급하는 장치입니다.
|
|
Feature
* Operation with minimized noise and vibration owing
to precious processing
* Adoption of high-precision bearing
* Minimixed maintenance cost
* Compact and elegant structure
* High-efficiency intercooler

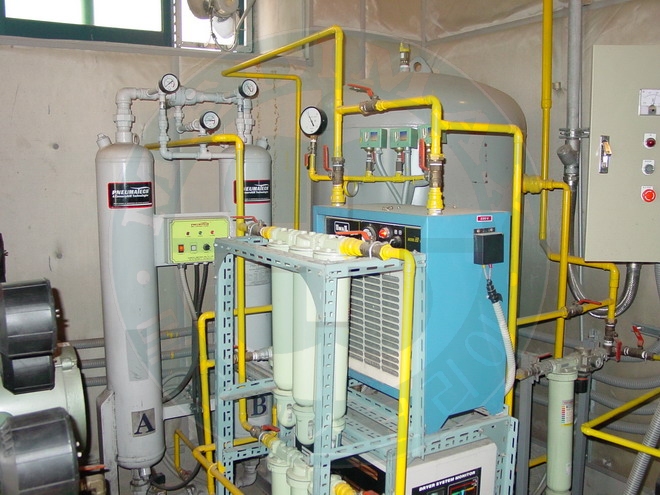

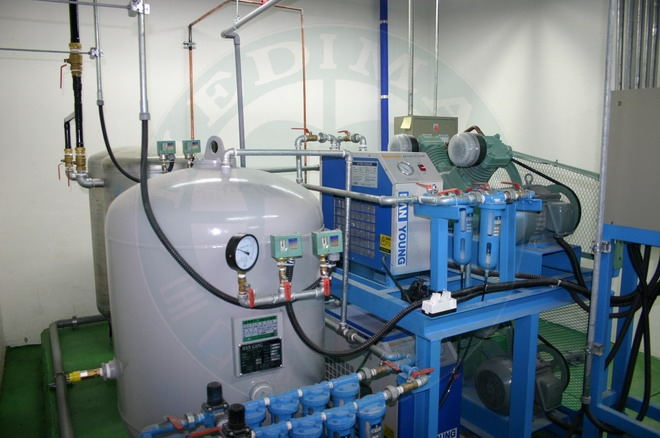

Construction
2 - Oilless Air-Compressor
/ 1 - Receiver Tank
/ 1 - After Cooler
/ 1 - Main Filter
/ 1 - Air Dryer
/ 1 - Pre Filter
/ 1 - Line Filter
/ 1 - Coalescer Filter
/ 1 - Adsorbent
/ 1 - Regulator
1 - Control Panel |
 |
|
 |
| |

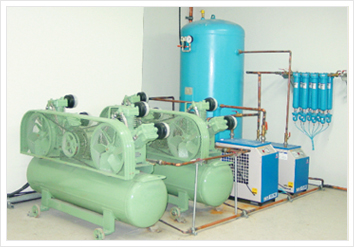

| ▒ Oil Free Reciprocating Bare Type ▒ |

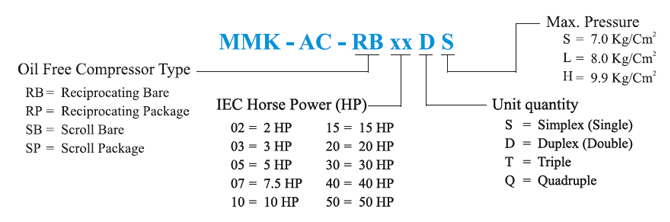

| Model |
Moter |
Free Air Delivery
(Liter/Min) |
Max.Pressure
(Kg/Cm)2 |
Noise
dB(A) |
Air Outlet
(inch) |
Receiver Tank
Capacity(Liter)
Service/Main |
Dehumidification Equipments |
| MMK-AC-RB01DS |
1Hp / 0.75Kw |
84 |
7 |
70 |
PT 3/8 |
66 / - |
* After Cooler : 1 set
* Refrigerated Air Dryer : 1 set
* Pre Filter (5 Micron) : 1ea
* Line Filter (1 Micron) : 1ea
* Coalescent Filter (0.01 Micron) : 1 ea
* Adsorbent Filter (0.01 ppm) : 1 ea
* Air Regulator : 1 ea
* Piping Installation Set
|
| MMK-AC-RB02DS |
2Hp / 1.5Kw |
165 |
7 |
70 |
PT 3/8 |
66 / - |
| MMK-AC-RB03DS |
3Hp / 2.2Kw |
255 |
7 |
73 |
PT 1/2 |
130 / 300 |
| MMK-AC-RB05DS |
5Hp / 3.7Kw |
430 |
7 |
75 |
PT 1/2 |
160 / 500 |
| MMK-AC-RB07DS |
7.5Hp / 5.5Kw |
640 |
7 |
80 |
PT 3/4 |
160 / 500 |
| MMK-AC-RB10DS |
10Hp / 7.5Kw |
850 |
7 |
82 |
PT 3/4 |
250 / 800 |
| MMK-AC-RB15DS |
15Hp / 11Kw |
1,250 |
7 |
85 |
PT 1 |
270 / 1,000 |
Standard Power source : 380V / 3Ph / 60Hz |
|

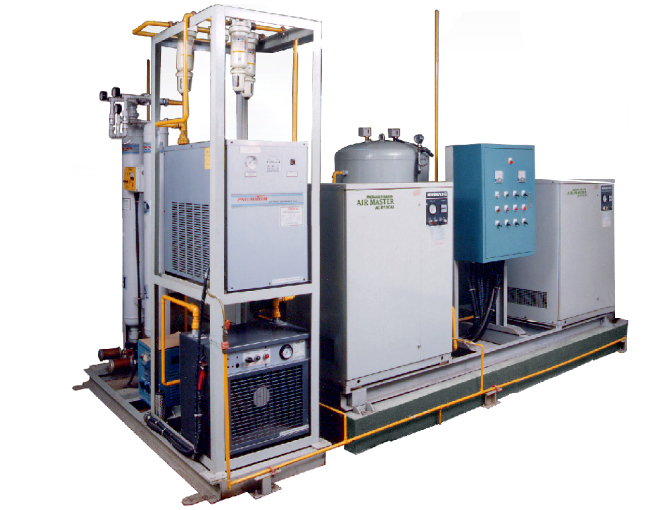

| ▒ Oil Free Scroll Package Type ▒ |
| Model |
Moter |
Free Air Delivery
(Liter/Min) |
Max.Pressure
(Kg/Cm)2 |
Noise
dB(A) |
Air Outlet
(inch) |
Receiver Tank
Capacity(Liter)
Service/Main |
Dehumidification Equipments |
| MMK-AC-SP01DS |
1Hp / 0.75Kw |
84 |
7 |
70 |
PT 3/8 |
66 / - |
* After Cooler : 1 set
* Refrigerated Air Dryer : 1 set
* Pre Filter (5 Micron) : 1ea
* Line Filter (1 Micron) : 1ea
* Coalescent Filter (0.01 Micron) : 1 ea
* Adsorbent Filter (0.01 ppm) : 1 ea
* Air Regulator : 1 ea
* Piping Installation Set
* Option :
- Desiccant type Air Dryer : 1 set
|
| MMK-AC-SP03DL |
3Hp / 2.2Kw |
271 (219) |
78.0 (9.9) |
49 |
PT 1/2 |
300 |
| MMK-AC-SP05DL |
5Hp / 3.7Kw |
416 (352) |
8.0 (9.9) |
50 |
PT 1/2 |
500 |
| MMK-AC-SP07DL |
7.5Hp / 5.5Kw |
687 (571) |
8.0 (9.9) |
52 |
PT 1 |
500 |
| MMK-AC-SP10DL |
10Hp / 7.5Kw |
832 (704) |
8.0 (9.9) |
53 |
PT 1 |
800 |
| MMK-AC-SP15DL |
15Hp / 11Kw |
1,248 (1,056) |
8.0 (9.9) |
56 |
PT 1 |
1,000 |
| MMK-AC-SP20DL |
20Hp / 15Kw |
1,664 (1,408) |
8.0 (9.9) |
58 |
PT 1 |
1,000 |
| MMK-AC-SP25DL |
25Hp / 18.75Kw |
2,080 (1,760) |
8.0 (9.9) |
59 |
PT 1 |
1,500 |
| MMK-AC-SP30DL |
30Hp / 22.5Kw |
2,496 (2,112) |
8.0 (9.9) |
62 |
PT 1-1/4 |
1,500 |
| MMK-AC-SP40DL |
40Hp / 30Kw |
3,328 (2,816) |
8.0 (9.9) |
63 |
PT 1-1/4 |
2,000 |
| MMK-AC-SP50DL |
50Hp / 37.5Kw |
4,160 (3,520) |
8.0 (9.9) |
65 |
PT 1-1/4 |
2,000 |
Standard Power source : 380V / 3Ph / 60Hz |
|
|
|
|
|
|
|
