| Medical Vacuum Pump System |
환자의
체내로부터 배출된 오물과 이물질등을 제거하기 위하여 진공압력을 만들어 내는 장치이며,
배관을 통하여 일렬로 연결된 흡인구에서 최대 0 ~ 740 mmHg의 진공압을
유지할수 있도록 되어있읍니다.
- 동시 사용율이 많을경우 두대가 동시에 동작하도록 하며, 정상압력 도달시간을
최소한 단축할수 있도록 타이머가 부착되어 있읍니다.
|
|
It's system that makes vacuum pressure to remove foreign substance in the patient body and vacuum pressure keeps 0 ~ 740mmHg from air inlet connected in a line through piping.
In lots of use amount at the same time, duplex system operates simutaneously and timer adheres mostly to reduce arrival time to normal pressure.
Feature
* Suitable for the exhaust of gas containing
vapor or moisture
* Conduct the best capaility in low pressure
* High quality performance
* Working smoothly without any noise
* No vibration

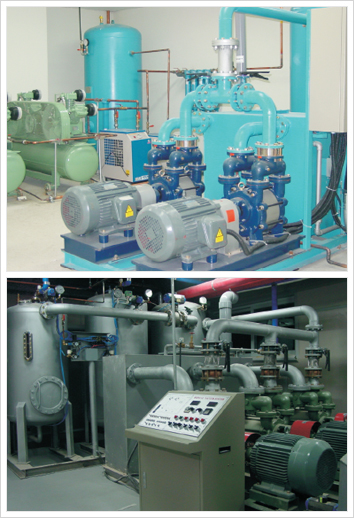

Construction

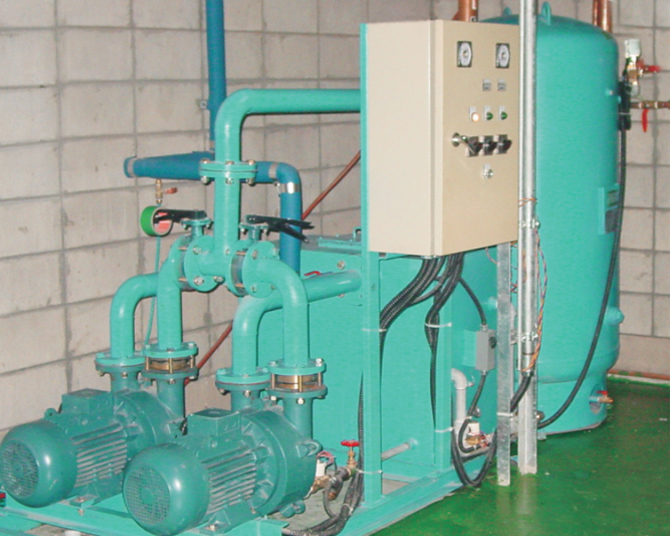

2 - Vacuum Pump
1 - Receiver Tank
1 - Separator Tank
1 - Automatic Water Supply / Drain System
1 - Control Panel
1 - W / Standard Accessories
|
 |
|
| |
| Model Number |
Type |
Moter |
Max. Air Flow
(Liter/Min|m3/hr) |
Max.Vacuum
(Torr | -mmHg) |
Seal Water Liquid
at 15℃ with NSR |
Vacuum
Inlet |
Receiver Tank
Capacity(Liter) |

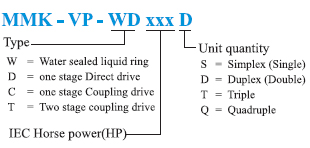

| MMK-VP-WD030D |
One Stage Direct Drive |
3Hp / 2.2Kw |
1,000 | 60 |
40 | -720 |
10 Liter/min |
1- 1/2” | 40A |
300 |
| MMK-VP-WD050D |
5Hp / 3.7Kw |
1,700 | 102 |
40 | -720 |
16 Liter/min |
1- 1/2” | 40A |
500 |
| MMK-VP-WD075D |
7.5Hp / 5.5Kw |
3,000 | 180 |
40 | -720 |
16 Liter/min |
1- 1/2” | 40A |
500 |
| MMK-VP-WD100D |
10Hp / 7.5Kw |
4,000 | 240 |
40 | -720 |
20 Liter/min |
1- 1/2” | 40A |
800 |
| MMK-VP-WC150D |
One Stage Coupling Drive |
15Hp / 11Kw |
5,500 | 300 |
40 | -720 |
20 Liter/min |
2- 1/2” | 65A |
1,000 |
| MMK-VP-WC200D |
20Hp / 15Kw |
6,700 | 420 |
40 | -720 |
30 Liter/min |
3” | 80A |
1,000 |
| MMK-VP-WC250D |
25Hp / 19Kw |
8,500 | 540 |
40 | -720 |
35 Liter/min |
3” | 80A |
1,500 |
| MMK-VP-WC300D |
30Hp / 22Kw |
10,000 | 660 |
40 | -720 |
40 Liter/min |
4” | 100A |
1,500 |
| MMK-VP-WT050D |
Two Stage Coupling Drive |
5Hp / 3.7Kw |
860 | 52 |
25 | -735 |
19 Liter/min |
1- 1/2” | 40A |
500 |
| MMK-VP-WT075D |
7.5Hp / 5.5Kw |
1,700 | 102 |
25 | -735 |
19 Liter/min |
1- 1/2” | 40A |
500 |
| MMK-VP-WT100D |
10Hp / 7.5Kw |
2,500 | 150 |
25 | -735 |
23 Liter/min |
1- 1/2” | 40A |
800 |
| MMK-VP-WT150D |
15Hp / 11Kw |
3,260 | 196 |
25 | -735 |
26 Liter/min |
1- 1/2” | 40A |
1,000 |
| MMK-VP-WT200D |
20Hp / 15Kw |
4,530 | 272 |
25 | -735 |
30 Liter/min |
2” | 50A |
1,000 |
| MMK-VP-WT250D |
30Hp / 22Kw |
7,650 | 459 |
25 | -735 |
45 Liter/min |
2” | 50A |
1,500 |
| MMK-VP-WT300D |
40Hp / 30Kw |
9,230 | 554 |
25 | -735 |
70 Liter/min |
3” | 80A |
1,500 |
Standard Power source : 380V / 3Ph / 50Hz~60Hz (Above specification can be changeable.) |
|
| ▒ Oil Sealed Type & Oil Free Dry Type ▒ |
 |
|
Oil sealed rotary vane vacuum systems are available in a multitude of cofiguratiions Simplex tank mount, Duplex tank mount, as
well as Triplex, and Quadruplex stack mount system The system shall include interconnecting piping and wiring and to provide a functional operating package with applicable electrical and plumbing connections at the installation site.
The packaged unit shall be factory assembled, tested, painted and crated prior to shipment.
Normal Operation Vacuum
* Oil Sealed Rotary Vane Pump System
Set at 550 ~ 700mmHg
* Dry Rotary Vane Pump System :
Set at 400 ~ 500mmHg
Stendard Equipments
* WOVP or WVS series Rotary Vane Pump(s)
* Tank receiver
* Electrical control panel
* Integral Piping and Wirings
* Vacuum gage and Vacuum Control switch
* Inlet air filter, Manual drain valve,
* Check valve & Pump isolation valve
* Three way solenoid valve (Optional)
|
 |
|
| ▒ Oil Sealed Type Vacuum Pump (Below specification can be changeable.) ▒ |
| Model |
Pump |
Moter
(Kw) |
50hz
Max. Air Flow
(Liter/Min|m3/hr) |
Moter
(Kw) |
60hz
Max. Air Flow
(Liter/Min|m3/hr) |
Max.Vacuum
(mbar | -mmHg) |
Oil filling
(Liter) |
Vacuum
Intake | Exhaust |
Receiver Tank
Capacity(Liter) |

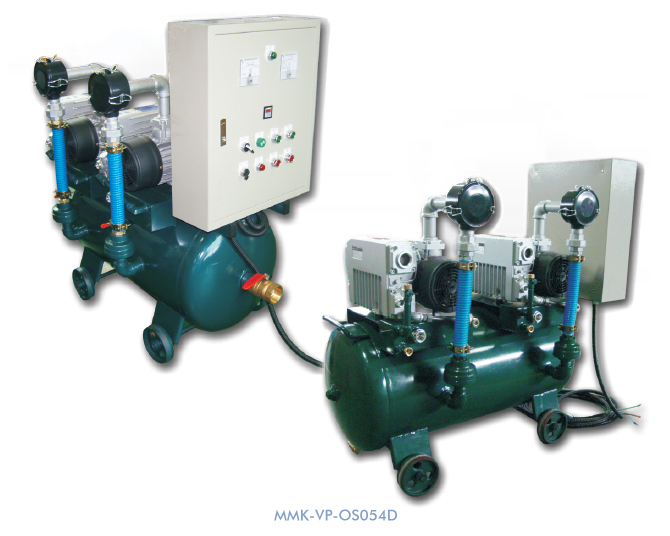

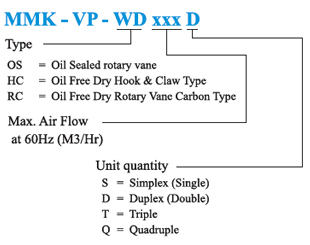

| MMK-VP-OS024D |
Oil Sealed Rotary Vane Type |
0.9Kw |
333 | 20 |
0.9Kw |
400 | 24 |
20 | -745 |
0.5 |
1/2” | 1-1/4” |
50 |
| MMK-VP-OS036D |
1.2Kw |
500 | 30 |
1.2Kw |
600 | 36 |
20 | -745 |
1 |
1 - 1/4” | 1 - 1/4” |
170 |
| MMK-VP-OS054D |
1.5Kw |
750 | 45 |
1.5Kw |
900 | 54 |
20 | -745 |
1 |
1 - 1/4” | 1 - 1/4” |
170 |
| MMK-VP-OS054D |
1.5Kw |
750 | 45 |
1.5Kw |
900 | 54 |
20 | -745 |
1 |
1 - 1/4” | 1 - 1/4” |
170 |
| MMK-VP-OS078D |
2.2Kw |
1,083 | 65 |
2.2Kw |
1,300 | 78 |
20 | -745 |
2 |
1 - 1/4” | 1 - 1/4” |
400 |
| MMK-VP-OS120D |
3.0Kw |
1,667 | 100 |
3.0Kw |
2,000 | 120 |
20 | -745 |
2 |
1 - 1/4” | 1 - 1/4” |
400 |
| MMK-VP-OS190D |
3.7Kw |
2,667 | 160 |
3.7Kw |
3,200 | 192 |
20 | -745 |
7 |
2” | 1 - 1/2” |
400 |
| MMK-VP-OS210D |
5.5Kw |
2,916 | 175 |
5.5Kw |
3,500 | 210 |
20 | -745 |
7 |
2” | 2” |
400 |
| MMK-VP-OS250D |
5.5Kw |
3,583 | 215 |
5.5Kw |
4,300 | 258 |
20 | -745 |
7 |
2” | 1 - 1/2” |
900 |
| MMK-VP-OS300D |
7.5Kw |
4,166 | 250 |
7.5Kw |
5,000 | 300 |
20 | -745 |
7 |
2” | 2” |
900 |
| MMK-VP-OS560D |
11.25Kw |
6,467 | 448 |
11.25Kw |
9,300 | 560 |
20 | -745 |
19 |
3” | 3” |
1,500 |
| MMK-VP-OS780D |
15Kw |
10,333 | 620 |
18.5Kw |
13,000 | 780 |
20 | -745 |
19 |
3” | 3” |
1,500 |
|
|
| ▒ Oil Free Dry Type Vacuum Pump (Below specification can be changeable.) ▒ |
| Model |
Pump |
Moter
(Kw) |
50hz
Max. Air Flow
(Liter/Min|m3/hr) |
Moter
(Kw) |
60hz
Max. Air Flow
(Liter/Min|m3/hr) |
Max.Vacuum
(mbar | -mmHg) |
Oil filling
(Liter) |
Vacuum
Intake | Exhaust |
Receiver
Tank
Capacity
(Liter) |

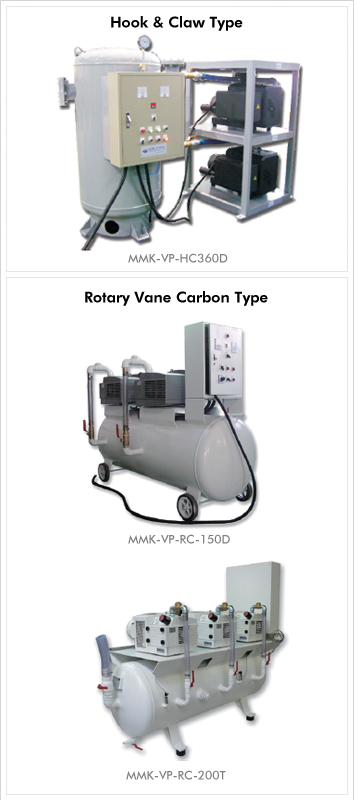

| MMK-VP-HC120D |
Hook &
Claw
Type |
2.2Kw |
1,667 | 100 |
3.0Kw |
2,000 | 120 |
153 | -645 |
0.5 |
1 - 1/2” | 1 - 1/2” |
400 |
| MMK-VP-HC180D |
3.0Kw |
2,500 | 150 |
3.6Kw |
3,000 | 180 |
153 | -645 |
0.5 |
1 - 1/2” | 1 - 1/2” |
400 |
| MMK-VP-HC280D |
4.0Kw |
3,900 | 234 |
5.5Kw |
4,700 | 282 |
153 | -645 |
0.75 |
2” | 2” |
900 |
| MMK-VP-HC360D |
5.5Kw |
5,000 | 300 |
6.5Kw |
6,000 | 360 |
153 | -645 |
0.75 |
2” | 2” |
900 |
| MMK-VP-HC600D |
9.0Kw |
8,333 | 500 |
11Kw |
10,000 | 600 |
153 | -645 |
0.75 |
3” | 3” |
1,500 |
| MMK-VP-RC048D |
Rotary Vane Carbon Type |
1.25Kw |
660 | 40 |
1.5Kw |
800 | 48 |
150 | -647 |
|
3/4” | 3/4” |
300 |
| MMK-VP-RC078D |
2.4Kw |
1,110 | 67 |
3.0Kw |
1,300 | 78 |
100 | -685 |
|
1” | 1” |
500 |
| MMK-VP-RC100D |
3.0Kw |
1,630 | 98 |
3.5Kw |
1,860 | 112 |
100 | -685 |
|
1- 1/2” | 1- ½” |
550 |
| MMK-VP-RC150D |
4.0Kw |
2,150 | 129 |
4.8Kw |
2,560 | 154 |
200 | -610 |
|
1- 1/2” | 1- ½” |
800 |
| MMK-VP-RC200D |
4.0Kw |
2,960 | 178 |
4.8Kw |
3,630 | 218 |
200 | -610 |
|
2-1/2” | 2-1/2” |
800 |
| MMK-VP-RC300D |
5.5Kw |
4,130 | 248 |
6.4Kw |
5,000 | 300 |
200 | -610 |
|
2-1/2” | 2-1/2” |
900 |
| MMK-VP-RC450D |
11.0Kw |
6,200 | 372 |
13.2Kw |
7,500 | 451 |
200 | -610 |
|
3” | 3” |
1,500 |
| MMK-VP-RC600D |
15.0Kw |
8,300 | 498 |
18.0Kw |
10,000 | 600 |
250 | -570 |
|
3” | 3” |
1,500 |
|
|
|
|
