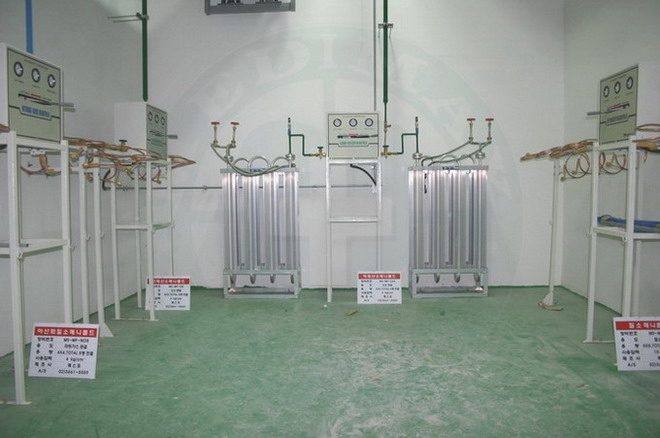

액화산소 메니폴드 시스템
Liquid Oxygen Gas Manifold System


초저온 액화 산소 가스를 저온의 상태에서 저장하고 필요에 따라 소정의 압력, 유량으로 기화 증발시켜 가스 상태로 사용처에 공급하는 장치 입니다.
고진공 단열방식을 채용한 액화용기 1병의 충전량은 160 Liter로 기체산소 25병에 해당하기 때문에 장시간 안전공급 및 설치면적 축소등의 이점이 있습니다.

Liquid Oxygen Gas Manifold System
  • It's system that vaporizes cryogenic liquid oxygen gas stored under low temperature situation with allotted pressure, flow to order and supplies vaporized oxygen gas to a requested place. Filling amount of a cylinder adopting insulated high degree vacuum method is 160 liter and the same with 25 gaseous cylinders so that it has merit with safe supply for a long time and don't need lots of installating area.

    PRIMARY SPECIFICATIONS
  • Semi auto trow-over / free standing
    * Cover : Stainless steel 1.2t
    * Frame : square steel pipe 30 x 30
    * Panel : aluminium 2t color printed P.P sheet coating
    * Max. Flow : 140 Nm3/Hr
    * Other :

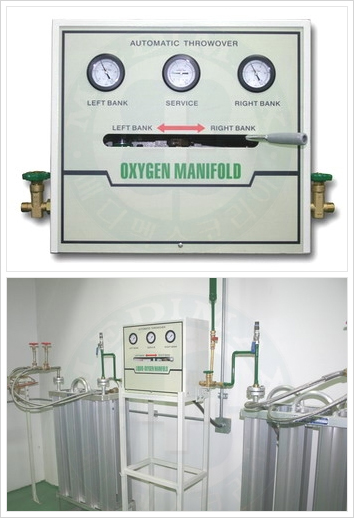

    • Left Bank Gauge
    Right Bank Gauge
    Supply Pressure Gauge
    Header Shut-off Valve
    Low Pressure Regulator
    Heig Pressure Regulator
    Pressure Switch
    Change Over Lever

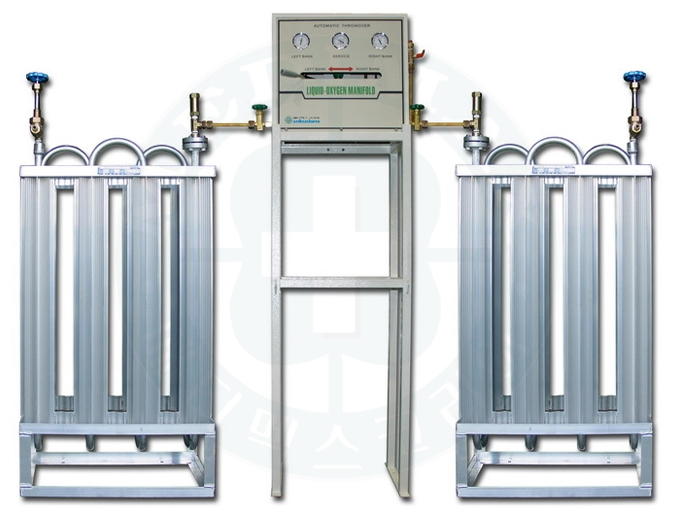

  • * VAPORIZER : 20 NM3/Hr
    * ECONOMIZER CIRCUIT
 Liquid Oxygen Gas Manifold System
Medical Gas Model Number( Cylinder x Cylinder ) Outlet Pressuer
(Kg/Cm2)		 Max. Inlet Pressure
(Kg/Cm2)
1 x 1 2 x 2 4 x 4
Oxygen MM-
10501A0		 MM-
10502A0		 MM-
10504A0		 0 ~ 5 30
